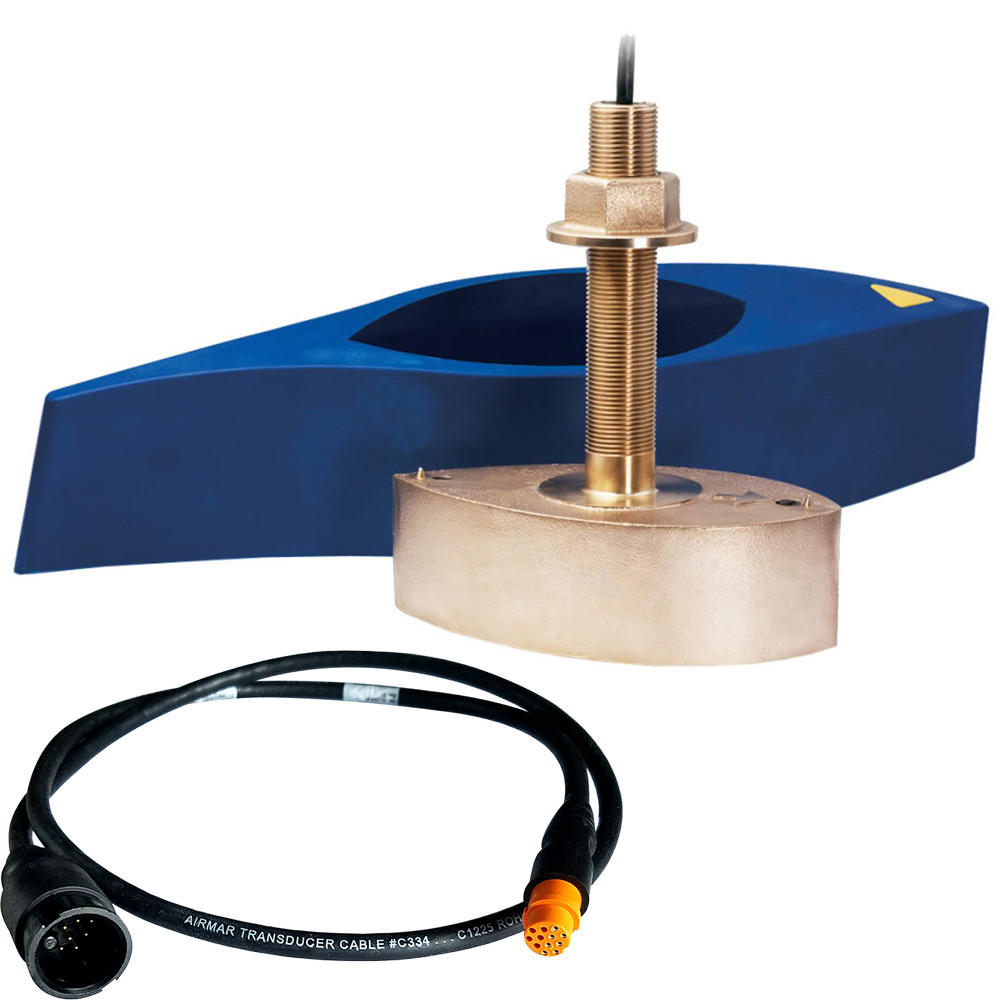

  • Airmar B275LH-W Bronze Chirp Thru-Hull f\/Garmin w\/12-Pin Connector [B275C-LHW-12G]

    • Airmar B275LH-W Bronze Chirp Thru-Hull f/Garmin w/12-Pin Connector [B275C-LHW-12G]

    Airmar

    $2,625.00
    (No reviews yet) Write a Review
    SKU:
    CWR-108760
    Width:
    4.00 (in)
    Height:
    1.00 (in)
    Depth:
    4.00 (in)
    MPN:
    B275C-LHW-12G

    Product Description

    B275LH-W Bronze Thru-Hull for Garmin with 12-Pin Connector

    Get more coverage under your boat with Airmar’s unique wide-beam, low and high-frequency, Chirp-ready B275LHW. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies, which results in superior resolution. The constantly wide beam provides twice the coverage and clear fish arches on the display compared to most high-frequency, narrow-beam transducers.

    The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 152 m (500'). The low-frequency band and 1 kW of power also support great deep-water performance. Get the best of both worlds with Airmar’s Chirp-ready transducers with wide-beam coverage.

    The included High-performance Fairing improves broadband results at speeds over 30 knots (34 MPH).

    Features:

    • Garmin 12-Pin Mix & Match Cable for Chirp Transducers
    • Depth and fast-response water-temperature sensing
    • 1KW of power for great deep-water performance from the low frequency
    • Low frequency: 42 to 65 kHz
    • 25° to 16° beamwidth
    • Maximum depth of 914 m (3000')
    • High frequency: 150 to 250 kHz
    • 25° constant beamwidth
    • Maximum depth of 152 m (500')
    • 123 kHz of total bandwidth from one transducer
    • Covers popular fishing frequencies of 50 and 200 kHz, plus everything else in the bandwidth
    • High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
    • High wide beamwidth yields more coverage for detecting fish in the upper water column
    • Bronze housing with High-performance Fairing for optimal performance at higher speeds
    • Also available as transom (TM275LHW) and pocket (PM275LHW) mounts
    • Patented Xducer ID® technology

    Specifications

    • Brand: Airmar Technology
    • Acoustic Window: Urethane
    • Cable-Length: 10 m (33')
    • Common Use: Fishing, Commercial Fishing
    • Connector: Garmin 12-Pin
    • Country of Origin: USA
    • Cross Reference: 010-12183-20
    • Deadrise Range: Up to 28° with fairing
    • Display Connector: 12G
    • Frequency Band: Low-High Wide
    • High Frequency: 150-250 kHz
    • High-Wide Beamwidth: 25°
    • Low Frequency: 42-65 kHz
    • Low Frequency Beamwidth: 25°-16°
    • Material: Bronze
    • Max Deadrise: Up to 20° with fairing
    • Max Depth: Low frequency- 914 m (3000'), High wide frequency- 152 m (500')
    • Mix and Match Series: 12-Pin Chirp
    • Sensor Connector: MMC
    • Single or Dual Frequency: CHIRP-Ready Dual-Band
    • Tilted Element: No
    • Weight: 7.3 kg (16 lbs.)
    • Power Rating: 1 kW
    • Max Deadrise Angle: 20°
    • Functions: Depth, Temperature
    • Hull Material: Fiberglass or wood
    • Mounting Style: Thru-Hull with Fairing
    • Max Vessel LOA: 8 m (25') and above
    • Hole Size: 30 mm (1-3/16")
    • Usable Shaft Length: 121 mm (4.75")
