  • Dometic MasterFlush 7160 White Electric Macerating Toilet - 12V w\/Orbit Base Raw Water Flush [304716001]

    • Dometic MasterFlush 7160 White Electric Macerating Toilet - 12V w/Orbit Base Raw Water Flush [304716001]

    Dometic

    MSRP: $683.87
    $525.99
    (You save $157.88 )
    (No reviews yet) Write a Review
    SKU:
    CWR-84917
    Width:
    24.00 (in)
    Height:
    23.00 (in)
    Depth:
    27.00 (in)
    MPN:
    304716001

    Product Description

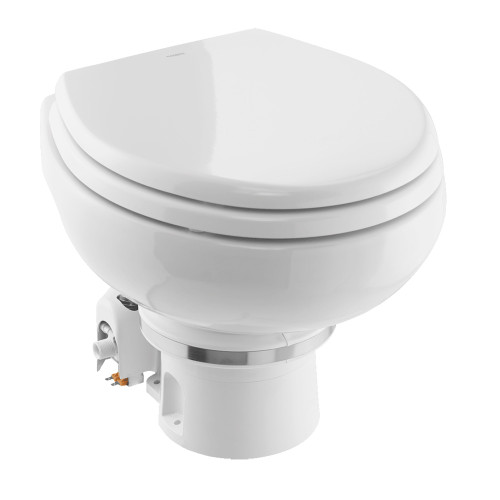

    MasterFlush 7160 White Electric Macerating Toilet - 12V with Orbit Base & Raw Water Flush

    Electric Macerating Toilet with ORBIT Base, Raw Water Flush

    MasterFlush 7100 series toilets, featuring an omnidirectional rotating base, provide the only full 360 degrees of bowl-to-base rotation in a basic macerator toilet. The base can be positioned in any configuration to maximize even the smallest installation space, all while providing a residential-size seat and bowl.

    Fitting a standard marine toilet in a small boat head usually meant sacrificing comfort and appearance for the sake of fit and function. However, the Omnidirectional Rotating Base Installation Technology puts a whole new spin on basic marine heads with the new MasterFlush 7100 series of Orbit toilets. By providing a full 360 degrees of bowl-to-base rotation, the Orbit toilet base can be positioned in any configuration to maximize even the smallest installation space and accommodate diverse plumbing layouts.

    Employing the same large enameled seat and deep ceramic bowl size of a residential round-front toilet, the 7100 toilet series introduces a new path to better comfort for owners of small boats. Smoothly contoured seat-to-bowl design conveys an expensive look - without the extra cost. And the deep, rounded slope adds not only to the appearance, but also to splash resistance during use and while underway.

    As with all Dometic MasterFlush toilets, the 7100 series assures trouble-free, odor-free performance by virtue of its unmatched maceration effectiveness. A rugged, glass-filled nylon twin impeller instantly draws effluent into the macerating chamber, where the 10-bladed stainless steel cutting wheel pulverizes waste and ejects it to the discharge line/holding tank.

    Key Benefits:

    • Powerful macerating flush
    • Full 360-degree ORBIT bowl-to-base rotation allows limitless base positioning in small spaces and diverse layouts
    • Small footprint - fits in most any head compartment
    • Uses as little as 1/3-gallon (1.2 l) per flush
    • Residential-size toilet seat and deep bowl for hygienic use
    • White
    • 12VDC
    • Comes with DFS-1F Flush Switch

    Technical Specifications:

    • Toilet technology: Macerator
    • Method of operation: Flush switch
    • Height: 14.75"
    • Width: 15"
    • Depth 19"
    • Water supply flow rate: 7.6 (lpm)
    • Input voltage: 12V
    • Circuit breaker fuse: 25AMP

    WarningWARNING: This product can expose you to chemicals including ARSENIC which is known to the State of California to cause cancer or other reproductive harm. For more information go to P65Warnings.ca.gov.

    Product Videos

    Custom Field

    MPN 304716001
