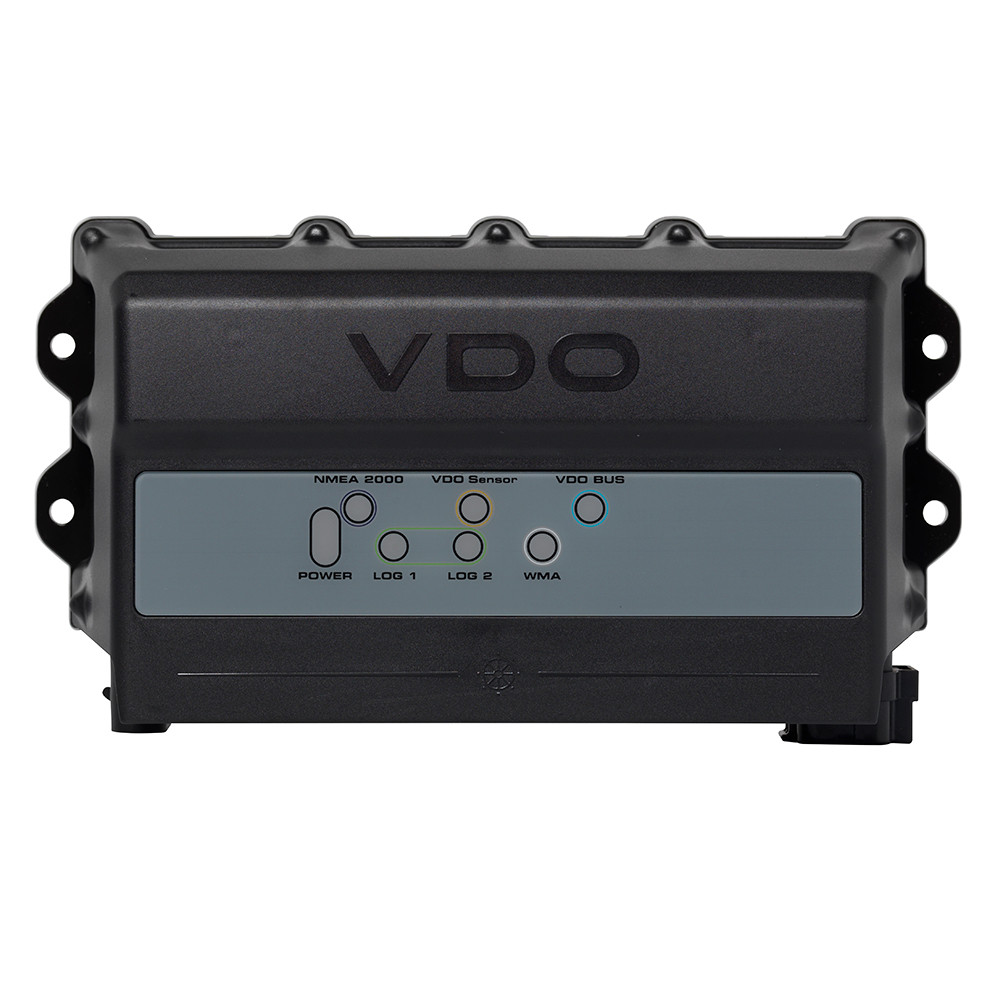

  • Veratron NavBox Electronic Control Unit [A2C59501979]
  • Veratron NavBox Electronic Control Unit [A2C59501979]

    • Veratron NavBox Electronic Control Unit [A2C59501979]

    Veratron

    MSRP: $712.99
    $641.69
    (You save $71.30 )
    (No reviews yet) Write a Review
    SKU:
    CWR-82529
    UPC:
    7640178720916
    Width:
    8.00 (in)
    Height:
    4.00 (in)
    Depth:
    12.00 (in)
    MPN:
    A2C59501979

    Product Description

    NavBox Electronic Control Unit

    The AcquaLink® NavBox is the core of the AcquaLink® VDO Marine system. It acts as a CPU and signal interface. The NavBox provides a wide range of digital and analog input possibilities. It supports up to four electronic engines (J1939 or NMEA 2000®) or one analog engine. It also features two VDO Marine Sumlog® paddle wheel sensor and one analog VDO Marine Windsensor connections, so legacy VDO Marine products can be used and brought to the digital age.

    NavSensor reads following analog data:

    • Engine Oil Pressure
    • Engine Oil Temperature
    • Engine Coolant Temperature
    • Transmission Oil Pressure
    • Fresh Water, Waste Water and Fuel Level
    • Voltage
    • Rudder Angle
    • Engine Frequency
    • Battery Current
    • Pyrometer

    It also features a NMEA 0183 input and output port as well as a buzzer output. All received data are converted and sent to the NMEA 2000® network and to the VDO Marine Bus. This gateway function allows displaying engine, liquid level, pressure, temperature and other vital information on any compatible display on the NMEA 2000® network or on designed VDO Marine AcquaLink® gauges or TFT Displays.

    The configuration of the NavBox can be done by using an AcquaLink® TFT and NavControl or by using the intuitive VDO Marine diagnostic tool.

    • Reverse polarity protection
    • NMEA 2000® certified
    • LED signal status indication
    • Aluminum base plate
    • Front & rear side protection rating IPX4
    • 3x VDO Marine bus lines
    • 1x J1939 CAN bus
    • 1x NMEA 2000® bus
    • 1x VDO Marine Analog Wind Sensor Input
    • 2x VDO Marine Sumlog® Inputs
    • AMP Super Seal power input
    • 26 pin AUX input (analog signals, NMEA 0183)
    • Operating temperature range -20°C/+70°C
    This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
