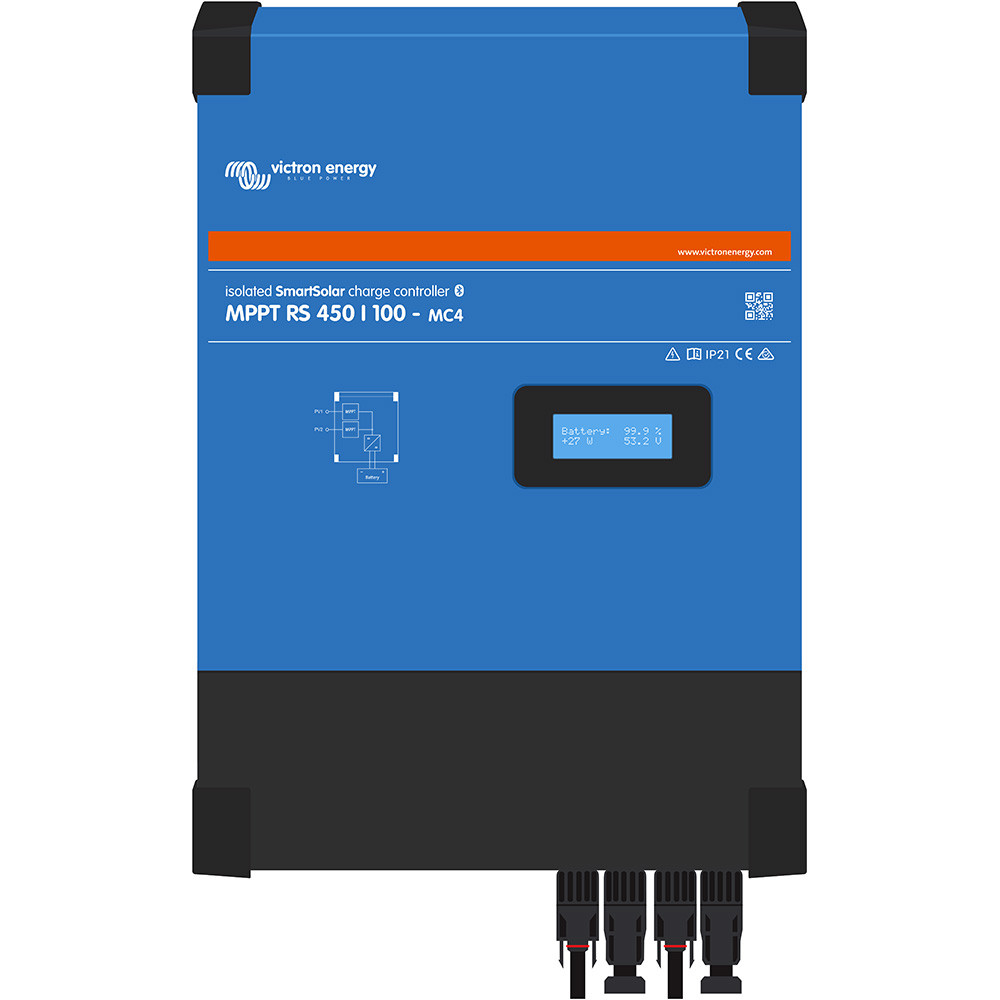

  • Victron SmartSolar MPPT 450\/100-MC4 VE.Can VE.Direct 450\/100 [SCC145110510]

    • Victron SmartSolar MPPT 450/100-MC4 VE.Can VE.Direct 450/100 [SCC145110510]

    Victron Energy

    MSRP: $1,304.00
    $1,108.40
    (You save $195.60 )
    (No reviews yet) Write a Review
    SKU:
    CWR-107910
    UPC:
    8719076062721
    Width:
    16.00 (in)
    Height:
    9.00 (in)
    Depth:
    22.00 (in)
    MPN:
    SCC145110510
    Adding to cart… category.add_cart_announcement

    Product Description

    SmartSolar MPPT 450/100-MC4 VE.Can VE.Direct 450/100

    The SmartSolar MPPT RS solar charge controllers are Victron's solution for systems with large series connected PV arrays charging 48 V DC battery banks. This product is perfect for large off-grid, and grid-connected battery systems.

    In a 5.76kW and 11.52kW model, features include a wide 65-450 VDC operating solar voltage input, independent tracking inputs, full connectivity, isolated PV connections, a display screen, fully programmable battery charging parameters, and active cooling. The new metal case design and fully covered electrical connections improve safety and modernize the presentation in line with the latest suite of Victron products.

    MPPT: Ultra Fast Maximum Power Point Tracking

    The SmartSolar RS solar charge controller connects to a PV array of between 65 and 450 Volt Voc and will efficiently charge your 48V battery bank with either 100A or 200A.The charge settings are fully programmable and can be set up for different battery chemistries, like lead-acid, lithium and more.

    Setup & monitor with VictronConnect

    The SmartSolar RS charge controller can be remotely controlled and configured over Bluetooth via the VictronConnect app. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, historical data and trends.

    Daisy Chain Additional Units

    The SmartSolar RS charge controller is equipped with VE.Can bus ports. This allows for communication with additional SmartSolar RS & VE.Can MPPT units. The additional units are simply “daisy chained” to each other with an RJ45 cable.When connected to each other, all individual charge controllers, will synchronise their charge stages. They can also send their data, via the same cable, for monitoring to a GX device (such as the Cerbo GX).

    Remote Monitoring and Control

    If the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your SmartSolar RS charge controllers.If your installation is connected to a GX device and the internet, Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; for free. For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520.

    SmartSolar Display

    The SmartSolar RS charge controller is equipped with a display on the front panel. The display reads battery volts, charge current and voltages from both array’s individually including instantaneous and total figures and unit status including any possible error codes.

    I/O Connections

    The SmartSolar RS charge controller is equipped with a programmable relay and options for remote temperature and voltage sensing. The remote input can accept the Victron smallBMS and other types of BMS with allow-to-charge signals.

    VictronConnect

    VictronConnect lets you get live status information and configure any Victron products which either have Bluetooth built-in, or are connected to a VE.Direct Bluetooth Smart Dongle.

    Please contact your dealer for any returns, repairs or support issues related to this product.


    Owner's Manual (pdf)
    Brochure (pdf)

    Product Videos

    Custom Field

    MPN SCC145110510
